In the previous two chapters, we introduced SIBO's small-sized joysticks. In this chapter, we will introduce SIBO's medium-sized joysticks. Due to the sufficient size and space, various special configurations can be made to achieve different functions, which let the medium-sized joysticks become the most mainstream joysticks in the market. Let's take a look at the medium-sized joysticks from SIBO.
Excellent Joystick Combination Platform
50JA and 50JC
50 series joystick can be said to be the most famous joysticks of SIBO. It is more a combination platform than a joystick. Through the combination of different parts to realize a variety of completely different functions, the final assembled joystick can also have different shapes.
Operation mode
-Spring return to center type
-Spring return to one side type
-Friction-positioning type
-Self-locking type
--Special specification with one axes spring return type and another axes friction-positioning type.
Peripheral Accessories
- Microswitch
To realize center detection, end detection, direction detection and other different functions
- Detent mechanism
To provide special hand feeling for the prompt for different operation positions
Operating Directions
- 1-dimensional Y directional operating type
- 2-dimensional cross direction of X and Y operation type
- 2-dimensional omni-directional 360°operation type
- Other special operating directions type
Knob type
- Grip type knob
- Knob with one swith
- Rotaty type knob (Z axis)
- Knob with two switches
- Small cobra head shaped knob with strong function customization.
Analog / Switch / Bus and other signals
More customization
The excellence of 50JA and 50JC certainly more than powerful function expansion ability, but also in its solid structure and excellent electrical performance. Its all-metal structure allows it to be used in a variety of harsh engineering occasions. The core of 50JA and 50JC is the SAKAE’s FCP22E potentiometer with excellent reliability and working life expectancy. If you pursue a higher working life expectancy, you can also choose H50JA and H50JC series products with non-contact potentiometers incooperated.
Only we cannot think, not impossible. If you have any special operation function requirements on the joystick, pleae feel free to try it on 50JA and 50JC joysticks.
Rising Star of SIBO SENTOP Joystick

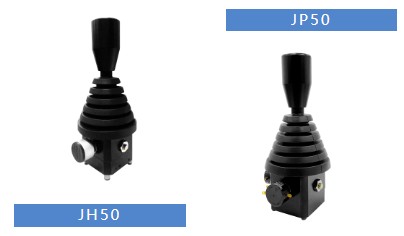

JP50 and JH50
JP50 and JH50 sereis are medium-sized joysticks produced by SIBO, which have same installation mode as that of 50JC series, and can realize various conventional functions of 50JC. But JP50 and JH50 have a great advantage in terms of cost performance, so they can be said to be the economical alternative of 50JC.
JP50 use the same core component as 50JC, namely Sakae high-quality conductive plastic potentiometer – FCP22E, which can realize the output of 10V~0~10V, - 10V~10V, 4mA~20mA and other analog signals by adding the signal conversion module produced by SIBO. It can also meet the needs of customers to provide CANbus, Modbus, and other Bus products, which greatly expands the types of output signals. Of course, these signal modules can also be installed on 50JA and 50JC.
In addition, you can also choose JH50 joystick incoorpated with SIBO’s contactless potentiometer. SIBO’s contactless potentiometer has a variety of optional output signals and has strong customizability, realizing holding area, V-type output, dual output, and various needs. At the same time, it also has a longer working life expectancy.
High Protection Grade Hall Effect Joystick
H60JH
Sakae's 60 series joystick, even under the powerful aura of 50JC joystick, still won the favor of many customers in the fierce competition. Its larger size represents better structural strength, higher protection grade from the enclosed lower half part, and higher life expectancy from the use of non-contact potentiometer, which is an ideal joystick product for use in such harsh conditions as construction machinery.
The most powerful part of H60JH is the HMC60JH combined with the mini Cobra head shaped knob. The panel of the mini Cobra head shaped knob can be equipped with various types of switches (momentary or maintained type, square or round shape, with light or swith-pot, etc.), fingertip joystick, seasaw potentiometer, etc. to achieve different functional combinations. The trigger switch at the back side of the knob ensures the safety, making it more meeting all kinds of functional requirements and high safety requirements of engineering machinery. This mini Cobra head shaped knob can also be combined with 50JC, JP50 and JH50 to form the 50 series multifunctional joysticks.
The above are the main medium-sized joysticks of SIBO. Compared with the small-sized joysticks, the medium-sized joysticks have stronger function expansibility and customization. So there are not only better products, but also a pre-sales support team to assist customers in product selection. SIBO has accumulated rich experience in the joystick application, and professional technical team to assist customers in the confirmation of product functions. Please feel free to consult with us for selection.
